Lifting Loop
Product Description
Lifting tool to be connected with all kinds of Rd thread anchor Wire rope
Soft and high strength Round thread
High strength Unique serial no. to track the manufacturing and using
2 times of proof tensile test on every loop before sending
Product Details
Size:

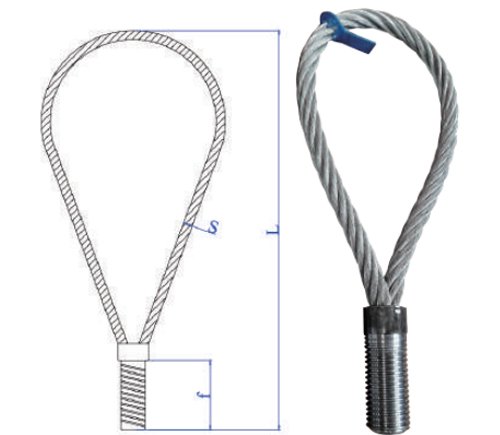

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| f | s | L | |||
| JLL120155 | RD12 | 20 | 6 | 155 | 500 |
| JLL160165 | RD16 | 23 | 8 | 165 | 1200 |
| JLL200215 | RD20 | 31 | 10 | 215 | 2000 |
| JLL240255 | RD24 | 38 | 12 | 255 | 2500 |
| JLL300300 | RD30 | 50 | 16 | 300 | 4000 |
| JLL360340 | RD36 | 60 | 18 | 340 | 6300 |
| JLL420420 | RD42 | 68 | 20 | 420 | 8000 |
| JLL520550 | RD52 | 86 | 26 | 550 | 12500 |
