Elephant Foot Anchor
Product Description
Ferrules provide a metric thread fixing point in precast concrete panels.
They are available in thread sizes from M12 to M24 in either zinc plated,hot dip galvanized or stainless steel.
Product Details
Size:

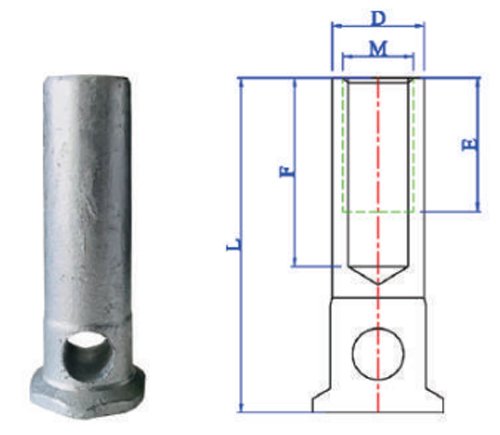

| ITEM NO. | Size | Dimensions(mm) | Cross hole to suit | |||
| D | L | F | E | |||
| JEFA10 | M10 | 16 | 45 | 27 | 20 | 8 |
| JEFA12 | M12 | 17 | 55 | 35 | 25 | 12 |
| 95 | 35 | |||||
| JEFA16 | M16 | 22 | 70 | 40 | 32 | 12 |
| 95 | 40 | |||||
| JEFA20 | M20 | 26 | 70 | 45 | 35 | 12 |
| 95 | 45 | 38 | ||||
| JEFA24 | M24 | 32 | 95 | 45 | 38 | 12 |
