Connecting Box
Product Description
The wire box consists of a high-strength steel wire and a steel box.
The wire box is mounted in the concrete element prior to the casting.
When the assembling between the concrete elements has been established, the longitudinal shearing forces in the assembling are divided into one angled compression operation and one horizontal pull function.
The wire boxes transfer the shearing forces in the assembling between the concrete elements by a pull function of the wire and a compression operation formed by the steel box and the assembling.
Product Details

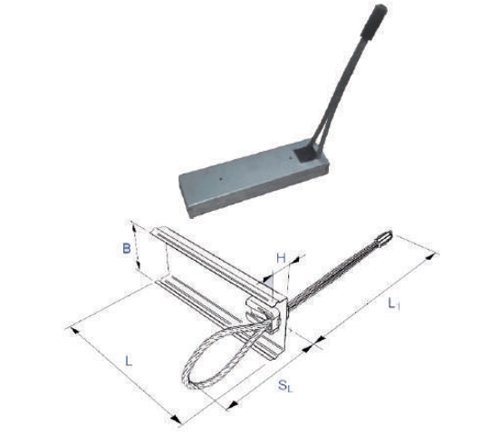

Size:
| Code | L(mm) | L1(mm) | B(mm) | H(mm) | S(mm) | Rope Dia(mm) |
| JCB080 | 160 | 190 | 50 | 20 | 80 | 6 |
| JCB100 | 160 | 190 | 50 | 20 | 100 | 6 |
| JCB120 | 160 | 190 | 50 | 20 | 120 | 6 |
| JCB140 | 200 | 200 | 50 | 20 | 140 | 8 |
